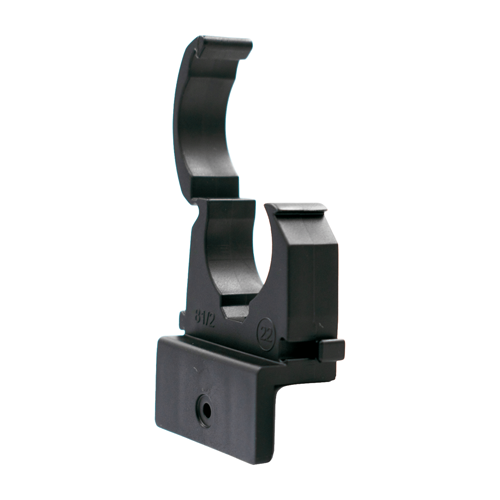

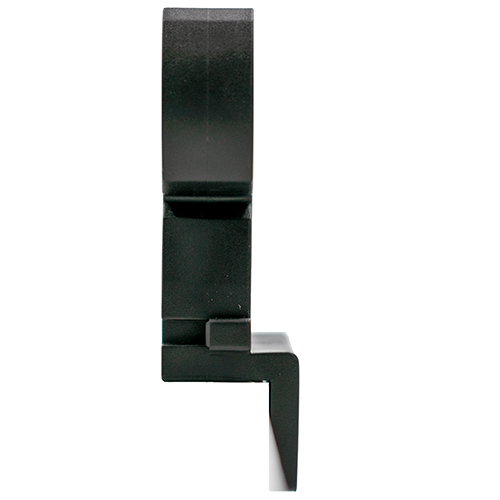

LokIt tube clamps are used to secure CTS piping in residential or commercial applications. The tube clamp has a split, ribbed design that allows for expansion and contraction of the piping as well as use after piping is run. These tube clamps are compatible with CTS copper, PEX, or CPVC tube and are IAPMO certified.The LockIt Joist Clamp offers a safer and easier install whilst stood side on for pipework above your head. All sizes of the LockIt Joist Clip can be connected together via the dovetail to allow for equal pipe spacing. The LockIt Joist Clip creates an easier and speedy installation for pipes in hard to reach locations.
Product Details
Lokit Full Clamps with Nails are designed with a preloaded nail, the design provides fast and easy push on installation for all types of copper tube size piping.
Push on installation, lead in edge automatically opens up the clamp
Patented removal wedge and notch allows for clamp removal
Complete stand off from surface
360 degree pipe protection allows tube to expand and contract
Much easier and safer to attach the clips stood side on above your head
360 degree retention
Can be positioned and fixed whilst pipe is in situ
INSTALLATION
Snap onto 1⁄2" or 3⁄4" CTS tube. Be sure to follow spacing requirements of national and local plumbing codes.
APPROVED USES
Manufacturer has approved the TubeTalon for use with: copper tube, CPVC tube, PEX/PB tube, and plastic/steel conduit.
MAXIMUM LOAD RATING
1⁄2" CTS clamp: 12 lbs. 3⁄4" CTS clamp: 16 lbs. 1" CTS clamp: 24 lbs.
DIMENSIONS
Width (15") 1"/25mm, (22") 1.3"/35mm
Height (15") 1.7"/45mm, (22") 2.1"/55mm
Depth (15") 0.8"/20mm, (22") 0.8"/20mm
